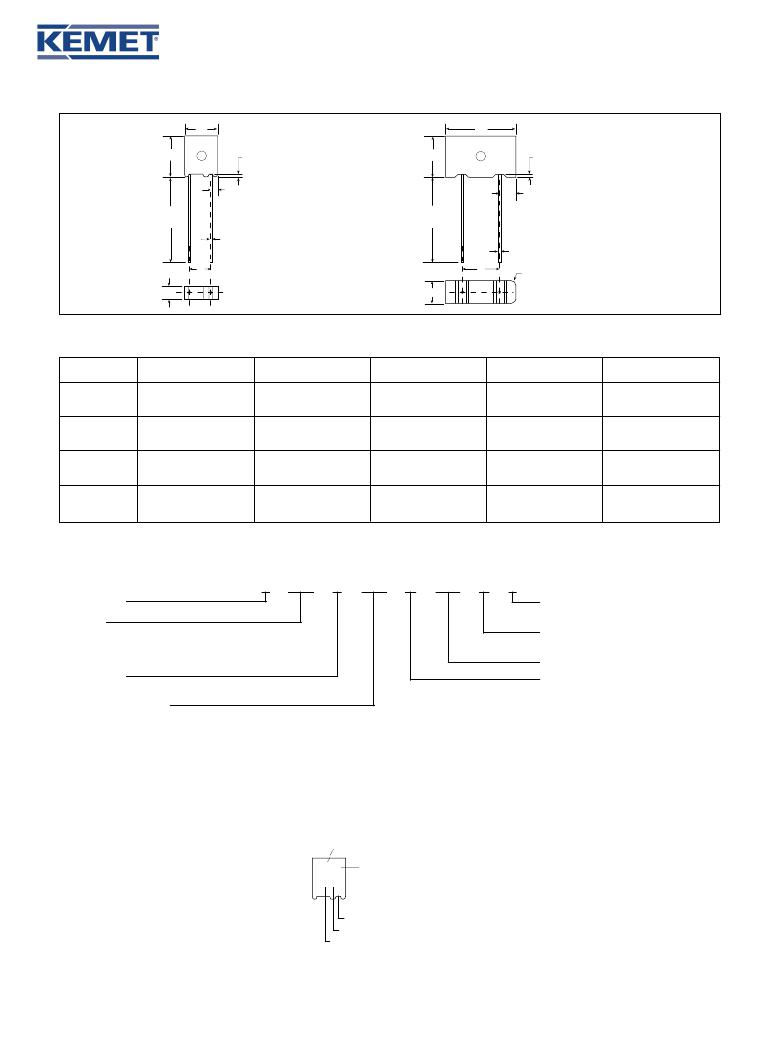

TANTALUM MOLDED / RADIAL
T330 SERIES - PRECISION MOLDED - RADIAL LEAD
CAPACITOR OUTLINE DRAWINGS
H
W
A CASE
.150 ± .005
(.38 ± .13)
H
W
.015 ± .005
(.38 ± .13)
B, C, & D CASES
.500 ± .125
(12.7 ± .3.18)
(Stand Off)
E
.020 ± .001
(.51 ± .03)
.500 ± .125
(12.7 ± .3.18)
(Stand Off)
E
.025 ± .001
(.64 ± .03)
T
S
T
S
.050R ± .005
(1.27R ± .13)
Note:
On the "B" case size the
stand off appears only
between the two leadss
DIMENSIONS — INCHES & (MILLIMETERS)
CASE
SIZE
A
B
C
D
H
CASE HEIGHT
.345 ± .008
(8.76 ± .203)
.225 ± .015
(5.71 ± 0.38)
.325 ± .015
(8.26 ± 0.38)
.375 ± .015
(9.53 ± 0.38)
W
CASE WIDTH
.230 ± .005
(5.84 ± .127)
.285 ± .015
(7.24 ± 0.38)
.325 ± .015
(8.26 ± 0.38)
.600 ± .015
(15.24 ± 0.38)
T
CASE THICKNESS
.105 ± .005
(2.67 ± .127)
.170 ± .015
(4.32 ± 0.38)
.170 ± .015
(4.32 ± 0.38)
.195 ± .015
(4.95 ± 0.38)
E
CASE TO WIRE
.050 ± .010
(1.27 ± .25)
.042 ± .010
(1.07 ± .25)
.062 ± .010
(1.57 ± 0.25)
.200 ± .010
(5.08 ± 0.25)
S
LEAD SPACING
.125 ± .005
(3.18 ± .127)
.200 ± .005
(5.08 ± .127)
.200 ± .005
(5.08 ± .127)
.200 ± .005
(5.08 ± .127)
ORDERING INFORMATION
TANTALUM
T
330 B 104 M 035 A
S*
LEAD MATERIAL
S — Standard (Solder-Coated Nickel)
SERIES
Radial Lead
Precision Molded Polar
Solid Tantalum
CASE SIZE
A/B/C/D
FAILURE RATE LEVEL
A — Not Applicable
VOLTAGE RATING
CAP. TOLERANCE
M — ±20% — Std.
PICOFARAD CODE
First two digits are significant figures.
K — ±10% — Std.
J — ±5% — Available on
request
Third digit is the number of zeros following.
*Part Number Example: T330B104M035AS (14 digits – no spaces)
MARKING INFORMATION
Capacitance
4.7K
25K
+
Tolerance:
5% - J
10% - K
20% - Standard (no mark)
Polarity
KEMET Trademark
Voltage Rating
50
KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606 (864) 963-6300
